· Products are manufactured according to API 11B Standards.

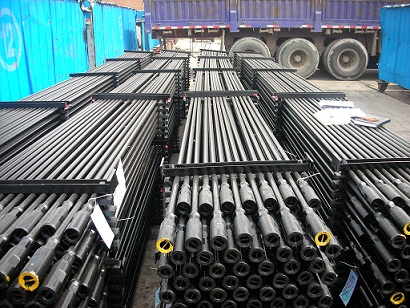

· Farsight delivers API sucker rods ranging from 5/8” to 1-1/4”, with lengths of 25 or 30 feet. Different steel grades are available, depending on the type of load and the corrosion level in the wells.
· GRADE D CARBON: Designed for non-corrosive or effectively inhibited wells with moderate loads.
· GRADE D ALLOY: Designed for moderate to high loads in non-corrosive or effectively inhibited wells.
· GRADE KD: Designed for corrosive wells where inhibiting is recommended, with moderate loads.
· GRADE D SPECIAL: Designed for corrosive wells with high and moderate loads where inhibition is recommended.
|
API Grade |
D Carbon |
D Alloy |
KD |
D Special |
|
AISI Grade |
4130 |
4142 |
4720 |
4330 |
|
Composition
(%) |
C |
0.26-0.33 |
0.38-0.45 |
0.19-0.23 |
0.29-0.37 |
|
Mn |
0.40-0.70 |
0.80-1.00 |
0.80-1.05 |
0.70-0.95 |
|
Si |
0.17-0.37 |
0.15-0.35 |
0.15-0.35 |
0.15-0.35 |
|
Ni |
0.30Max |
0.45Max |
0.90-1.20 |
1.65-2.00 |
|
Cr |
0.80-1.10 |
0.80-1.10 |
0.80-1.05 |
0.80-1.10 |
|
Mo |
0.15-0.25 |
0.15-0.25 |
0.24-0.30 |
0.20-0.30 |
|
Mechanical Properties |
Yield Strength
0.2% offset
PSI (MPa) |
85,000 (586) |
85,000 (586) |
85,000 (586) |
85,000 (586) |
|
Ultimate Tensile Strength
PSI (MPa) |
115,000 – 140,000
(793 – 965) |
115,000 – 140,000
(793 – 965) |
115,000 – 140,000
(793 – 965) |
115,000 – 140,000
(793 – 965) |
|
Elong δ % |
≥10 |
|
Heat Treatment |
Quenched |
Normalized |
Normalized |
Quenched |
|
Tempered |
Tempered |
Tempered |
Tempered |
|
Size |
OD |
5/8″, 3/4″, 7/8″, 1″, 1-1/8″ |
|
(mm) |
(15.88), (19.05), (22.23), (25.40), (28.58) |
|
Length |
25’, 30’ (+/- 2.0″per API requirement) |
|
(m) |
(7.62), (9.14) (+/- 50.80mm per API requirement) | |
|
